Rainwater Modular Tank
Size: 800x450x370mm
Weight: 10.6kg/tank
Void Ratio: 95%
Storage Capacity: 130L/tank
Load Capacity: 900KN/m2
Temperature: -30℃-120℃
Material: 100% Recyclable PP
Colors Available: Green,Black
Rainwater Harvesting Modular tank is a part of the rainwater harvesting system, which can effectively collect and store rainwater. Rainwater resources collected through Doctor Rain Rainwater Module can be used to wash toilets, sprinkle pavement, irrigate lawns, water landscape, and even be used for circulating cooling water and fire fighting water. It can alleviate the current shortage of urban water resources, and is an effective way to open source and save water.
Vertical Loading Capacity Test Report
| No. | Product Name | Loading Capacity (kN) | Loading Capacity per sqm (kN/m^2) | Received 360000.000mm^2(mm^2) |
| 1 | 327.67 | 910.194 | 360000 |
Lateral Loading Capacity Test Report
| No. | Product Name | Loading Capacity (kN) | Loading Capacity per sqm (kN/m^2) | Received 360000.000mm^2(mm^2) |
| 1 | 75.721 | 255.813 | 296000 |
Product characteristics:

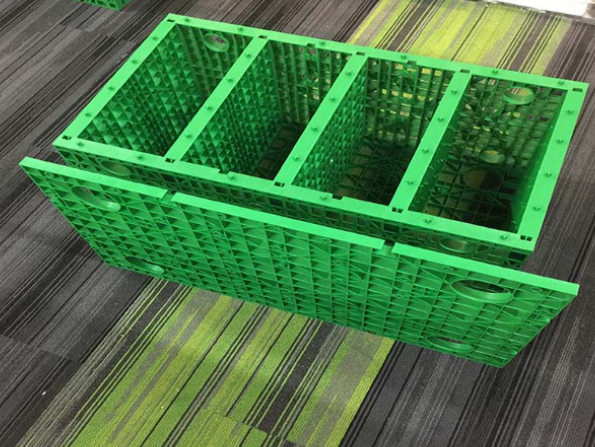

1. Rainwater harvesting module is flexible in product design. Several PP modules are assembled into a pool by yellow clips in the figure. The shape of the pool can be assembled arbitrarily according to the demand and is not restricted by the site.
2. Long service life: Doctor Rain's rainwater collection tank is made of PP plastic, durable materials, aging resistance, high temperature, low temperature, and can adapt to various harsh environments.
3. Convenient construction and short construction period: Because modules are joined together, simple construction, no need for large-scale machinery, and can be assembled into boxes on site, which can realize Backfilling on the same day of excavation.
4. Fast transportation: split design, module removable, saving valuable transport space.
5. Strong bearing capacity: In the same industry in China, rain doctor's rainwater collection module is far ahead of the load. The module structure has super pressure bearing capacity, so the pond can continue to serve as greening, square, pedestrians and carriageways, parking lots, etc.
6. Environmental protection: Doctor Rain's rainwater collection module is made of recycled environmental protection PP material. It is green and environmentally friendly. Deep buried underground will not destroy the whole ecological environment system. It is simple to maintain and can be recycled.
7. Low Cost: Compared with the traditional stainless steel and concrete pools, Doctor Rain's Rainwater Module reduces the time cost, transportation cost and later maintenance cost in many ways.
Product Application:
Doctor Rain's rainwater collection pool covers a wide range of areas, including urban residential areas, municipal public roads, squares, Park greening, industrial parks and so on, saving limited external space. The rainwater collection module can be installed in the driving area and cover a greater depth in the driving area. Reasonable installation of the module in the driving area must be carried out at the request of professional engineers.
