Products

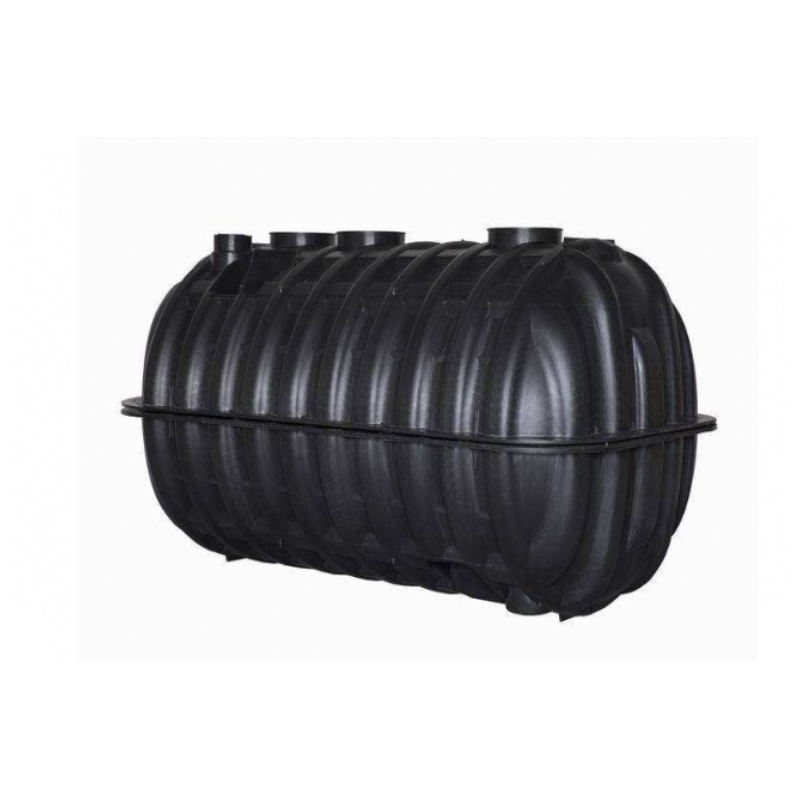

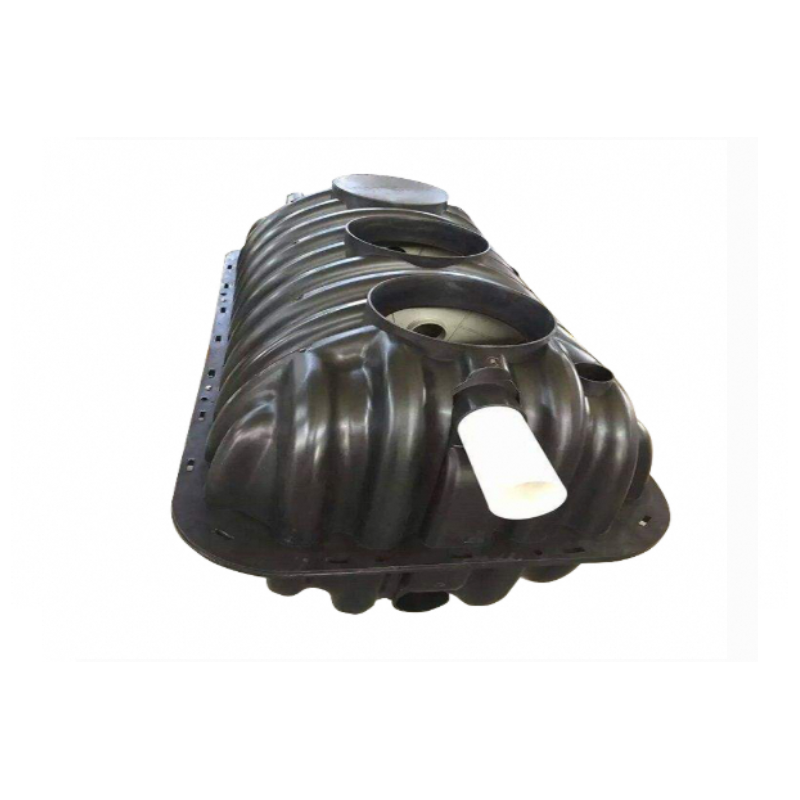

Plastic Septic Tank

Doctor Rain's septic tank is a part of the rainwater treatment system. In the absence of municipal sewage treatment plants, local sewage treatment equipment attached to the building belongs to the initial stage of sewage treatment. It can remove 50% of the suspended impurities (feces, large pathogens, etc.) and decompose the sediment into a stable state under anaerobic conditions. After maturation, it can be used as agricultural fertilizer.
Contact Us 뀠
ꁆ ꁇ

Product Specification



Item Size Weight Persons Spare Parts Qty&Size
0.9CBl Septic Tank 1720*960*921 mm 31 KGS 3-4 Persons 1.Lid DN22cm(pcs)DN 22CM
(2pcs),2 Filter Board DN 84cm
(2pcs),3 Filter Buckle 2 Units
1.0CBl Septic Tank 1796*974*930mm 34 KGS 3-5 Persons
1.1CBM Septic Tank 1943*980*941mm 36 KGS 3-5 Persons
1.4CMB Septic Tank 2009*1082*1037mm 42KGS 3-5 Persons
1.2CMB Septic Tank 1920*1020*1065mm 41 KGS 6-9 Persons 1.Lid DN22cm(pcs)DN 22CM
(2pcs),2 Filter Board DN 84cm
(2pcs),3 Filter Buckle 2 Units
1.5CMB Septic Tank 2030*1100:*1140mm 49 KGS 10-12 Persons 1.Lid DN22cm(pcs)DN 22CM
(2pcs),2 Filter Board DN 100cm
(2pcs),3 Filter Buckle 2 Units
2.0CBl Septic Tank 2350*1200*1170mm 82 KGS 13-15 Persons
2.5CMB Septic Tank 2750*1210*1180mm 129 KGS 13-15 Persons



Product characteristics:



1. PP septic tank is well sealed, and will never produce the phenomenon of breakage and slag formation caused by foundation settlement. It completely solves the problem of groundwater pollution caused by brick septic tank and ensures the reliable operation of septic tank and the role of anaerobic manure.



2. The structure design of products with high compressive strength is reasonable and the pressure is uniform. After more than 200 cycles of testing, the truck does not settle in the upper rolling and does not deform.



3. Small area, the product covers an area of about 45% of the traditional septic tank, saving land resources.



4. Installation and construction are convenient and can be assembled freely according to site requirements, and can be put into use within 2 hours after installation; 5. The treatment effect is good. The design of staggered layer on the bulkhead of the product is good. The original direct current flooding, smooth matrix transfer, application of anaerobic biological filter (AF) filling system, retains more biomass, and the sewage treatment capacity is doubled than that of the septic tank of the same volume. Upper;



5. Long service life. This product is resistant to humidity, acid and alkali, oxidation, high and low temperature without deformation. It has been used normally for more than 50 years.



6. Low overall cost of economic indicators is 80% of reinforced concrete structure, which is an environmental protection product promoted by urban construction departments.



Product Application:



Dr. Yu's septic tank is widely used in urban residential areas, including residential buildings, office buildings, schools, sanatoriums, enterprise workshops, rural living rooms and other industrial and civil buildings of domestic sewage treatment facilities. This product has been widely used in all regions of the country, and can be installed in multi-angle interface according to the needs of sewage discharge.

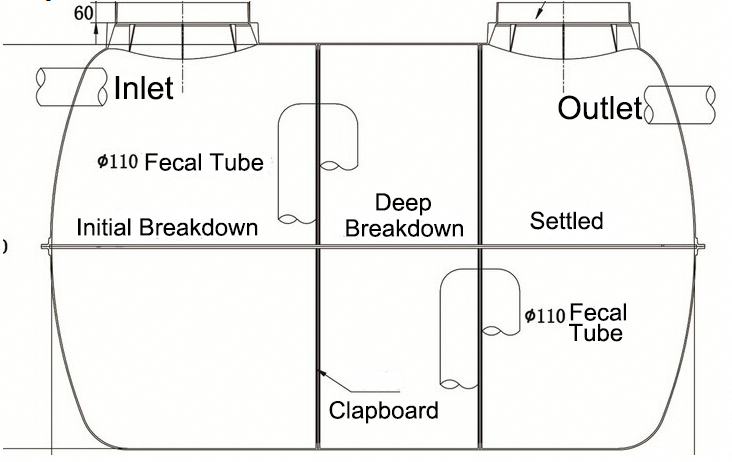

Diagram
